Bright Annealed Tube

Out Diameter and Inside Diameter Tolerance / WT Tolerance : ±0.08mm/ or as per production standard, or up to your required. Length Tolerance:-0/+6mm;Straightness::Max.0.15mm/m;Concentricity: ±0.015mm;

PRODUCT DETAILS:

Product Name

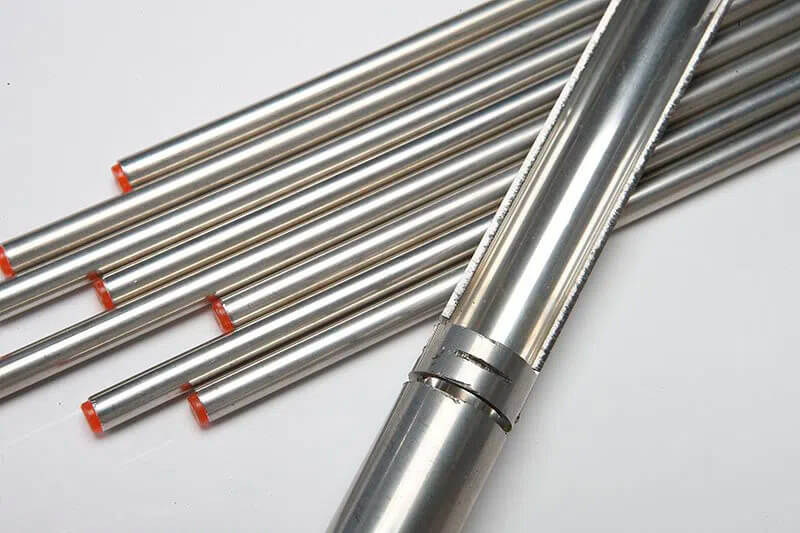

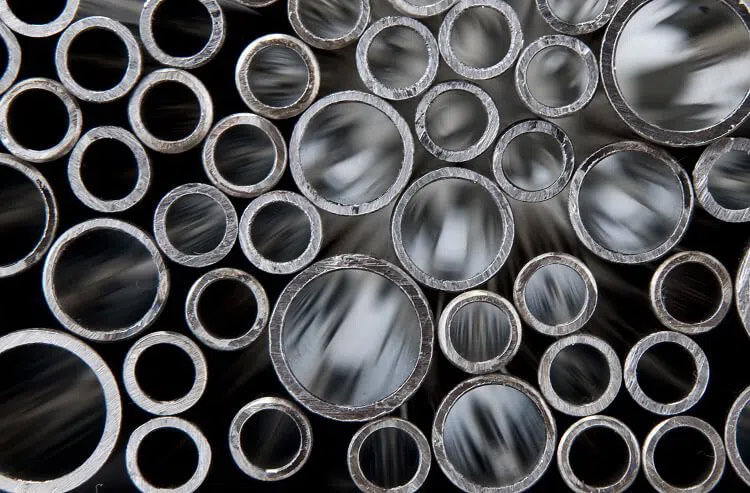

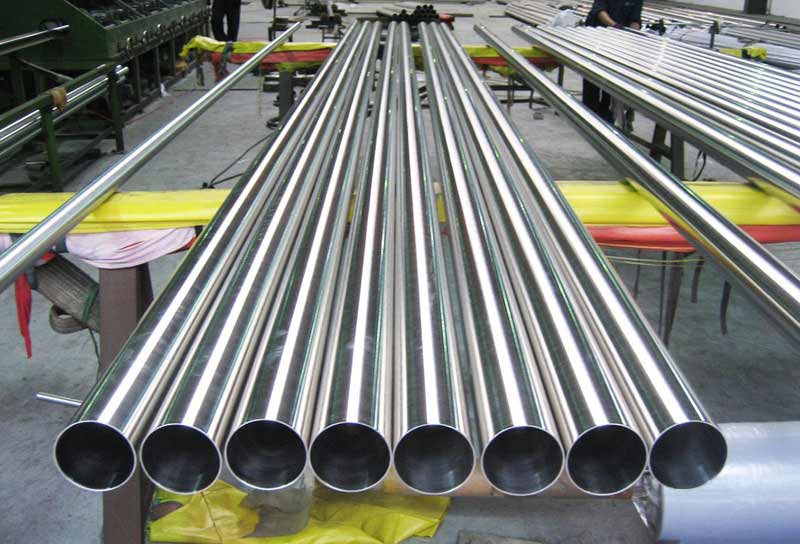

Bright annealed stainless steel tube

Length

20 feet /6 meters/ as order required.

Out Diameter

As required , 6mm-60.3mm

Thickness

As required, 0.7mm-5mm

Standard

ASTM A213, EN10216-5, A268 ASTM A-213/269, EN10297-2 | DIN 239 |

Technique

Cold rolled,Cold draw

Surface Treatment

Bright Annealing/ 400-1200# polished, Ra<0.8<m/Ra<0.4<m/Ra<0.25<m/ as required.

O.D. tolerance

±0.03mm/ as required

Thickness tolerance

±0.03mm/ as required

Material

TP304, TP304L, TP304L, TP316 / TP316L, TP316LMo, TP316H, TP316Ti, TP317L, TP321, TP321H, TP347, TP904L

Quality test

3.1 cert of MTC(mill test certificate),3.2 third part cert.

MOQ

Accept sample order.

Shipment time

Within 45 days.

Export packing

Standard Export Seaworthy Package, All tubes to be individually sleeved with end cap, packed in ply-wooden cases.Suit for all kinds of transport.

UNS EN ASTM
S30400
1.4301 / 1.4307
TP304
S30403
1.4306
TP304L
S30409
1.4948
TP304H
S31600 / S31603
1.4401 / 1.4404
TP316 / TP316L
S31603
1.4435
TP316LMo
View
S31609
1.4919 / 1.4918
TP316H
View
S31635
1.4571
TP316Ti
1.4438
TP317L
S32100
1.4541
TP321
S32109
1.4878
TP321H
View
1.4550
TP347
View
S31254
1.4547
View
N08904
1.4539
TP904L

Product Technical Details

1. Out Diameter and Inside Diameter Tolerance / WT Tolerance : ±0.08mm/ or as per production standard, or up to your required. Length Tolerance:-0/+6mm;Straightness::Max.0.15mm/m;Concentricity: ±0.015mm;

2.Heat Treatment:Bright Annealing;

3.Tubes Cleaning: Pickling or Ultrasonic cleaning with independent intellectual property rights to ensure bright annealed stainless steel tube inside and outside cleanliness.

4.Surface treatments: In accordance with customer requirements for internal and external polishing and Marking.

5.Test Reports: We can provide PMI of material chemical composition inspection report, MTC(Mill Test Cert.), Eddy Current test report, Ultrasonic test report, Hydraulic test report, Tensile Strength test report for product of bright annealed stainless steel tube.

Main technology and process:

1.Technology of controlling mechanical properties of bright annealed stainless steel tube by cold drawing deformation

2.Inner hole finish control technology.

3.Tubes inside surface cleaning technology.

4.Precision cold drawing technology.

1: Can you do our own packaging?
A: Yes, you just provide the package design and we will produce what you want. We also have the professional designer can help you do the packaging design.

2: How many different types of products your company manufactures?
A: Now we have different sizes products. We have a strong advantage of OEM, just give us the actual products or your idea that you want, we will manufacture for you.

3: When can I get the price?
A: Usually we quote within 8 hours after we get your inquiry.

4: What’s your MOQ?
A: If we have the products in stock, it will be no MOQ. If we need to produce, we can discuss the MOQ according to customer’s exact situation.
